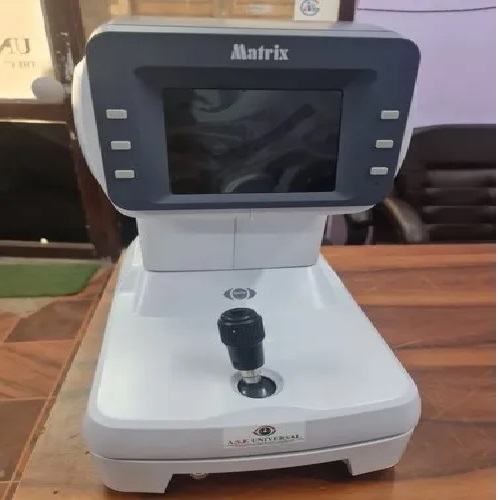

Matrix KR20 Auto Ref Keratometer. Elegant look with award winning design, latest software with attractive features are the prime attractions of New Ultra Series of Refractometers. 21st century image processing algorithm with unique Japanese ARM Processor is responsible for most accurate and fast measurement.
Features:
BMM: Burst Measurement Mode:(3 readings in one shot)
Titable 5.7 inch hi-resolution color LCD display, allows the operator to access the machine in standing position.
Motorized chin restcontrol makes it more comfortable for easy maneuever of the machine.
On-Screen display of 10 measurements per eye with PD & average data for subjective test.
Vertical Auto Tracking with BMM technology makes the machine faster accurate.
Accurate & wide measurement range with Auto ,Manual & IOL mode of operation.
Provides corneal curvature both in mm as well as in diopter(Only in KR 20+)
Cornea & pupil size measurement in mm, through on-screen cursor adjustment.
Faster & accurate reading with wider measuring area within small pupil.
Compatible with Matrix Digital Auto Phoropter DAP-30+
| Model Name/Number | KR20+ |
| Brand | Matrix |
| Dimension | 288 X 500 X 480 mm (W x D x H) |
| Weight | 14 Kg |
| Operation Mode | REF mode/K-mode or R/K mode (selectable) |
| Data Transmission | RS-232C interface (For Auto Phoropter & PC connection) |
| Power Source | 110~240V AC. 50~60Hz /50 VA |
| Internal Monitor | 5.7inch hi-resolution colour LCD monitor |
| Measurable Pupillary Distance | 30 ~ 85 mm( 1 mm step),Automatic |
| Vertex Distance | 0,12,13.5 or 15 mm (selectable) |
| Min Measurable Pupil Diameter | 2.00 mm |
